3D Cooling/Additive Manufacturing

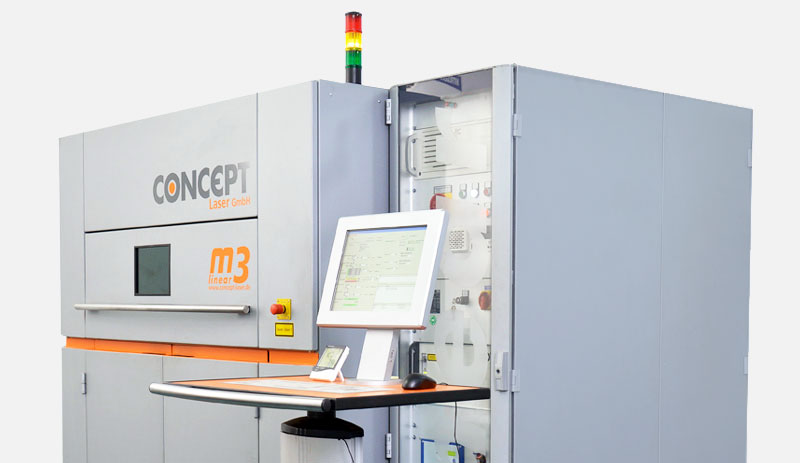

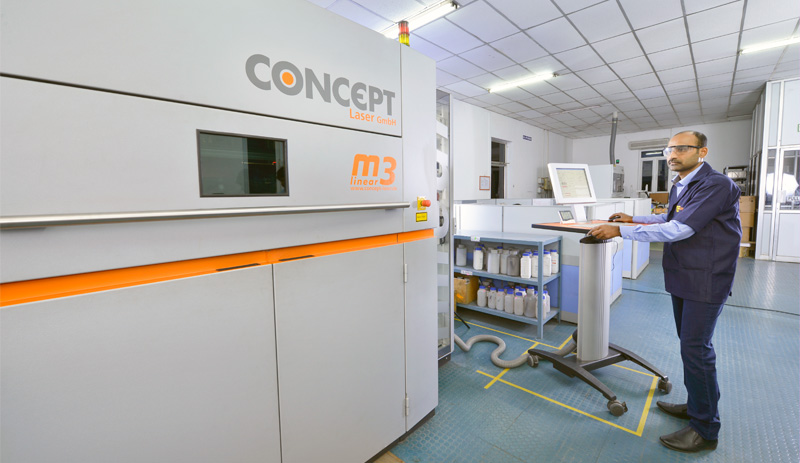

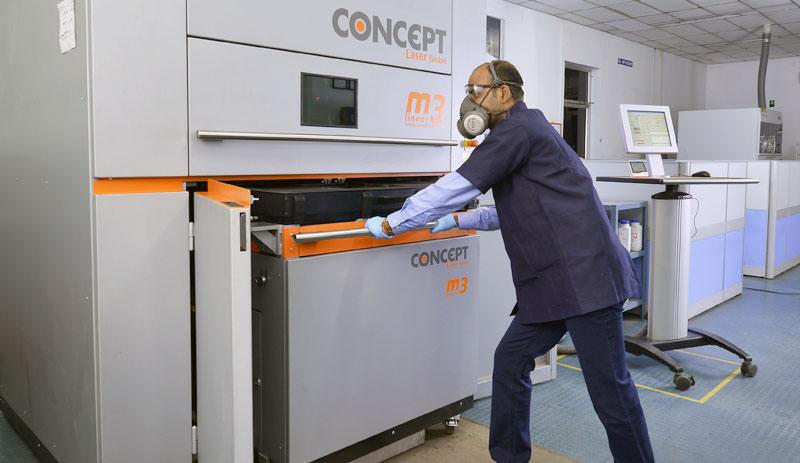

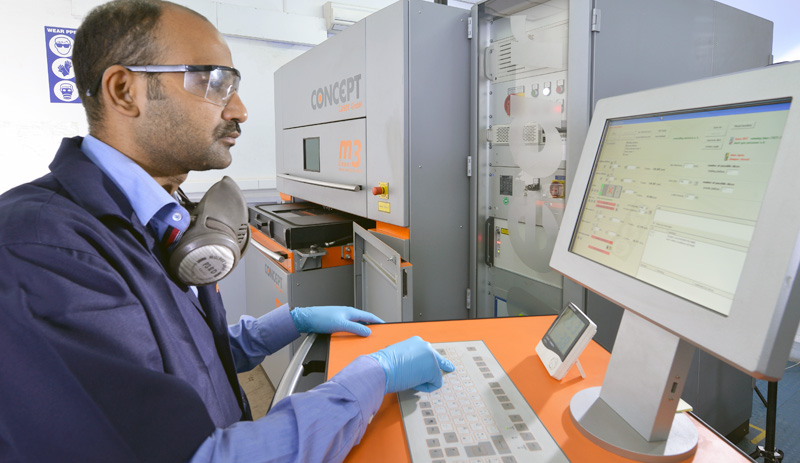

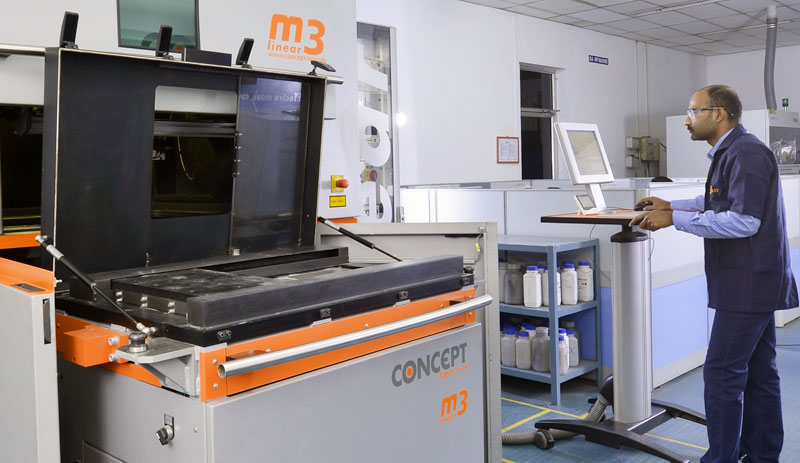

Laser CUSING® Technology of layer-by-layer construction of metal powder helps to produce near to 100% dense Components. A method of manufacturing Metal Prototypes (Direct Metal Parts ) for the Product Development & Batch parts production to save Time & Cost. This process can be widely used for various industries like Aerospace, Automotive, Medical, Precision part manufacturing, Consumer product manufacturing, Mold manufacturing (Plastic & Die casting), Jewellery etc..

Laser CUSING® allows the user to have Tooling inserts with Internal Features (Conformal/3D Cooling). This improves the aesthetics & dimensional accuracy of the Component.

Fusion of single-component metallic powder materials: This method allows the layer-by-layer construction of components from almost all metallic materials (e.g. stainless steel and hot work steel powders). Metallic powder is hereby fully fused layer for layer to produce a 100% component density.

We can produce direct metal parts made of following materials

  • Stainless Steel - 1.4404
  • Hot-Work Steel - 1.2709

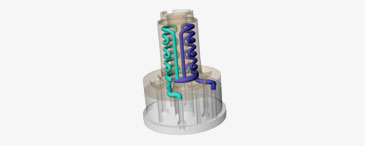

Conformal Cooling

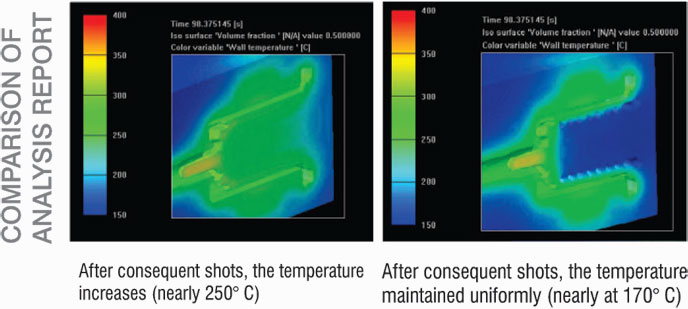

Few examples in Comparison of Conformal Cooling with Conventional Cooling.

WARPAGE CONTROL

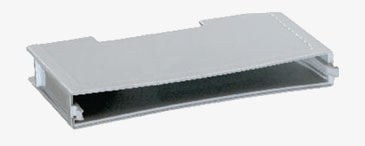

Warpage observed
More man-power deployed

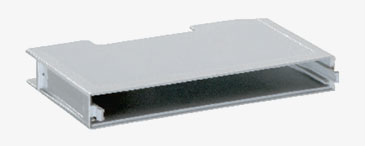

Warpage Minimized.
Man-power Elimination + Cycle-time Reduction

Objective: Warpage & Cycle Time Reduction
Result: Warpage reduced & Cycle Time reduced

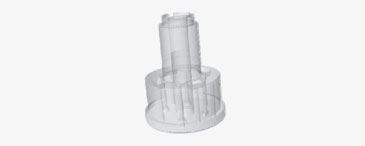

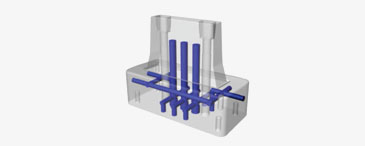

Conventional Cooling

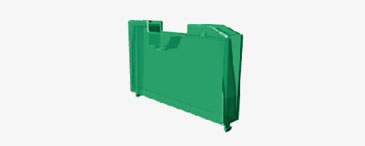

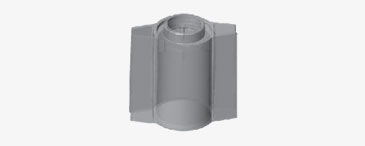

Component

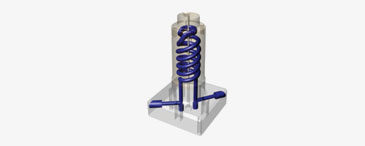

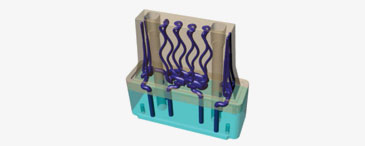

Conformal Cooling

  • Conventional Cooling: Cooling Time - 10 Secs, Warpage - 0.70 mm
  • Conformal Cooling: Cooling Time - 6 Secs, Warpage - 0.20 mm
  • Cooling fixtures eliminated

Objective: Warpage & Cycle Time Reduction
Result: Warpage reduced, cooling time reduced and overall rejections reduced

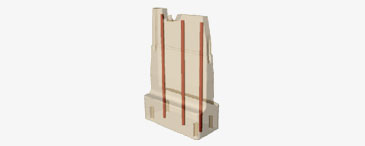

Conventional Cooling

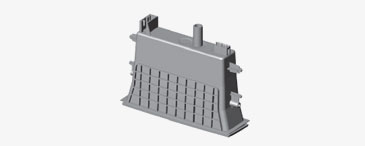

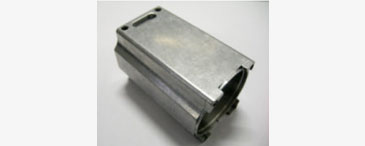

Component

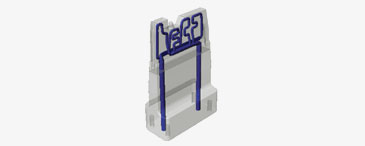

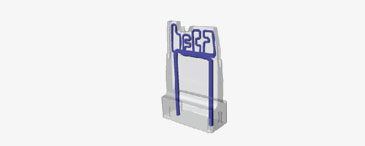

Conformal Cooling

  • Conventional Cooling: Cooling Time - 50 Secs, Warpage - 20 Secs, Rejections - 12%
  • Conformal Cooling: Cooling Time - 3.5 mm, Warpage - 0.2 mm, Rejections - 3%
  • Cooling fixtures eliminated

BRAKE SYSTEM CYLINDER

PA6 - 30% GF - 100 mm long

Without Conformal Cooling

With Conformal Cooling

  • Conventional Cooling: Surface finish - Ra 1.5, Part Catching - Yes, Ovality - 0.3mm
  • Conformal Cooling: Surface finish - Ra 0.3, Part Catching - No, Ovality - 0.05mm
  • 25% reduction in cooling time

Objective: To reduce machining allowance & porosity.
Result: Part quality improved & machining time reduced due to minimum draft

Conventional Cooling

Component

Conformal Cooling

  • Conventional Cooling: Machining Stock - 0.8 mm, Draft - 1.0°/Side, Before LASER CUSING Porosity found due to high machining stock(Draft 1.0°)
  • Conformal Cooling: Machining Stock - 0.3 mm, Draft - 0.5°/Side, After LASER CUSING Porosity reduced(Draft 0.5°)

Objective: To reduce machining allowance & porosity
Result: Part quality improved & machining time reduced due to minimum draft

Conventional Cooling

Component

Conformal Cooling

  • Conventional Cooling: Machining Stock - 1.1 mm, Draft - 1.5°, Before LASER CUSING Porosity found due to high machining stock (Draft 1.5°)
  • Conformal Cooling: Machining Stock - 0.3 mm, Draft - 0.5°, After LASER CUSING Porosity reduced(Draft 0.5°)
